FrameWindow 框架窗口

框架窗口,支持窗格布局,窗格停靠码头,窗格浮动,窗格拖动,窗格合并等自由组合,并且包含一个主视图.

消息格式请参加文档 事件.

步骤

1. 初始化UI库 XInitXCGUI().
2. 创建窗口 XFrameWnd_Create().
3. 创建窗格 XPane_Create().
4. 添加窗格 XFrameWnd_AddPane().
5. 显示窗口 XWnd_Show().
6. 运行程序 XRunXCGUI().
7. 释放UI库 XExitXCGUI().

代码示例

#pragma comment(lib, "XCGUI.lib")
#include "xcgui.h"

class CFrameWindow_Demo
{
public:
    HWINDOW m_hWindow;
    HELE    m_hPane1;
    HELE    m_hPane2;
    HELE    m_hPane3;
    CFrameWindow_Demo()
    {
        m_hPane1=NULL;
        m_hPane2=NULL;
        m_hPane3=NULL;
        Init();
    }
    void Init()
    {
        m_hWindow = XFrameWnd_Create(0, 0, 600, 400, L"炫彩界面库窗口",NULL, window_style_default);

        m_hPane1=XPane_Create(L"111",200,200,m_hWindow); //创建窗格
        m_hPane2=XPane_Create(L"222222222222",200,200,m_hWindow);
        m_hPane3=XPane_Create(L"333",200,200,m_hWindow);

        XFrameWnd_AddPane(m_hWindow,NULL,m_hPane1,pane_align_left); //添加窗格
        XFrameWnd_AddPane(m_hWindow,NULL,m_hPane3,pane_align_right);

        XFrameWnd_MergePane(m_hWindow, m_hPane1, m_hPane2); //合并窗格

        //XFrameWnd_SetView(m_hWindow,XEle_Create(0,0,100,100,m_hWindow)); //设置主视图
        XWnd_RegEventCPP(m_hWindow,WM_RBUTTONUP,&CFrameWindow_Demo::OnWndRButtonUp);
        XWnd_RegEventCPP(m_hWindow, XWM_MENU_SELECT, &CFrameWindow_Demo::OnWndMenuSelect);

        XWnd_AdjustLayout(m_hWindow);
        XWnd_ShowWindow(m_hWindow,SW_SHOW);
    }
    int  OnWndRButtonUp(UINT nFlags,POINT *pPt,BOOL *pbHandled)
    {
        POINT pt=*pPt;

        //创建弹出菜单
        HMENUX hMenu=XMenu_Create();
        XMenu_AddItem(hMenu,201,L"窗格1");
        XMenu_AddItem(hMenu,202,L"窗格2");
        XMenu_AddItem(hMenu,203,L"窗格3");

        ClientToScreen(XWnd_GetHWND(m_hWindow),&pt);
        XMenu_Popup(hMenu,XWnd_GetHWND(m_hWindow),pt.x,pt.y);
        return 0;
    }
    int OnWndMenuSelect(int nID,BOOL *pbHandled)
    {
        XTRACE("menu id %d \n", nID);
        switch(nID)
        {
        case 201:
            {
                if(NULL==m_hPane1) return 0;
                if(XPane_IsShowPane(m_hPane1))
                    XPane_HidePane(m_hPane1);
                else
                    XPane_ShowPane(m_hPane1);
            }break;
        case 202:
            {
                if(NULL==m_hPane2) return 0;
                if(XPane_IsShowPane(m_hPane2))
                    XPane_HidePane(m_hPane2);
                else
                    XPane_ShowPane(m_hPane2);
            }break;
        case 203:
            {
                if(NULL==m_hPane3) return 0;
                if(XPane_IsShowPane(m_hPane3))
                    XPane_HidePane(m_hPane3);
                else
                    XPane_ShowPane(m_hPane3);
            }break;
        }
        return 0;
    }
};

int WINAPI wWinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPTSTR lpCmdLine, int nCmdShow)
{
    XInitXCGUI();
    //XC_ShowLayoutFrame(TRUE);
    CFrameWindow_Demo  MyWindow;
    XRunXCGUI();
    XExitXCGUI();
    return 0;
}

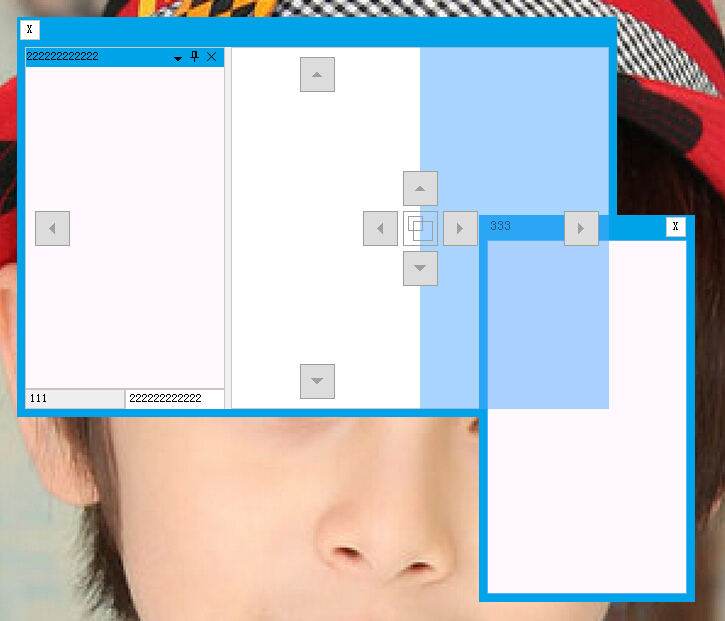

截图
